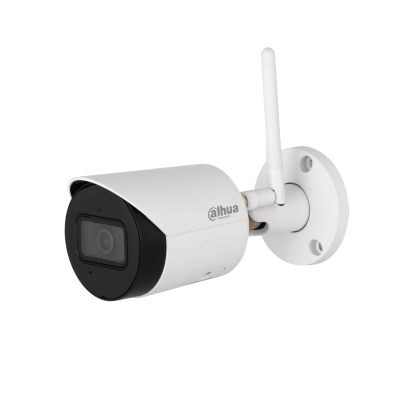

DH-IPC-HFW1230DS-SAW

Mã sản phẩm: DH-IPC-HFW1230DS-SAW

• 2MP IR Fixed-focal Wi-Fi Bullet Network Camera
• Chuẩn nén hình ảnh H.265+.
• Chế độ ICR, DWDR, AWB, AGC, BLC, 3D-DNR.
• Tầm xa hồng ngoại 30m.
• Hỗ trợ khe cắm thẻ nhớ 256GB
• Hỗ trợ kết nối Wifi, tích hợp MIC thu âm.
• Ống kính cố định 3.6mm (tùy chọn 2.8mm).
• Công suất 4.1W.
• Chuẩn chống nước IP67.
• Chất liệu kim loại.

Liên hệ 1.900.000 VNĐ

Đăng nhập để có giá ưu đãi

• 2MP IR Fixed-focal Wi-Fi Bullet Network Camera
• Độ phân giải 2 Megapixel cảm biến CMOS 1/3”, Max 2 MP (1920 × 1080)@25/30 fps
• Chuẩn nén hình ảnh H.265+.
• Chế độ ngày đêm (ICR), Chống ngược sáng DWDR, tự động cân bằng trắng (AWB), tự động bù tín hiệu ảnh (AGC), bù sáng (BLC), chống nhiễu (3D-DNR).
• Tầm xa hồng ngoại 30m với công nghệ hồng ngoại thông minh.
• Hỗ trợ khe cắm thẻ nhớ 256GB.
• Hỗ trợ kết nối Wifi, tích hợp MIC thu âm.
• Hỗ trợ xem hình bằng nhiều công cụ: Web, phần mềm CMS (DSS/PSS) và DMSS.
• Ống kính cố định 3.6mm (tùy chọn 2.8mm), chuẩn tương thích Onvif (Profile S/Profile G)
• Điện áp DC12V, công suất 4.1W.
• Chuẩn chống nước IP67
• Chất liệu kim loại

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.025 lux@F2.0 (Color, 30 IRE)
0.0025 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:
Horizontal: 100°; Vertical: 53°; Diagonal: 120°
3.6 mm:
Horizontal: 86°; Vertical: 43°; Diagonal: 102°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.0 m (3.28 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

46.9 m (153.87 ft)

18.8 m (61.68 ft)

9.4 m

(30.84 ft)

4.7 m

(15.42 ft)

3.6 mm

58.8 m (192.91 ft)

23.5 m (77.10 ft)

11.8 m (38.71 ft)

5.9 m

(19.36 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080 (1–25/30 fps)
Sub stream:
640 × 480@(1–25 fps)

640 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Audio

Built-in MIC

Yes

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection; intensity change

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4–2.4835 GHz

Wireless Range

Up to 80 m (The performance varies based on actual environment)

SDK and API

Yes

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability

ONVIF (Profile S/Profile G); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB, sold separately)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

Power

Power Supply

12 VDC

Power Consumption

Basic: 2 W (12 VDC)
Max. (H.265+IR intensity): 4.1 W (12 VDC)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)
