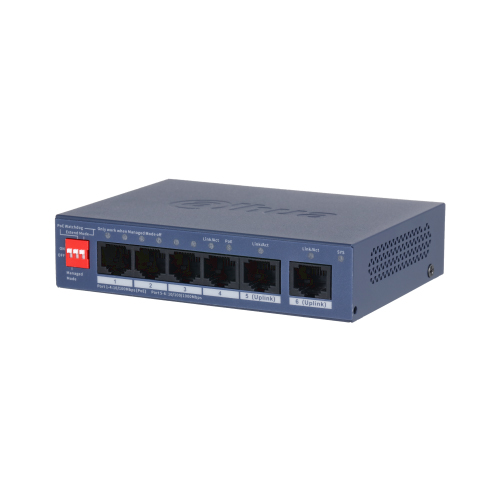

DH-CS4006-4ET2GT-36

Mã sản phẩm: DH-CS4006-4ET2GT-36

6-Port Cloud Managed Desktop Switch with 4-Port PoE
_ Đáp ứng tiêu chuẩn IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab.
_ Hỗ trợ tính năng PoE Watchdog, truyền khoảng cách xa (lên đến 250m), Loop Protection.
_ Hỗ trợ quản lý qua: Web, Cloud (DoLynkCare).
_ Cổng giao tiếp:
+ Port 1-4: 4 × RJ-45 10/100 Mbps (PoE);
+ Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink).
_ Công suất PoE: Port 1-4 ≤ 30 W, total ≤ 40 W.
_ Khả năng chuyển đổi: 4.8 Gbps.
_ Bộ nhớ lưu trữ MAC: 2K.
_ Nguồn: 53 VDC, 0.8 A.
_ Chống sét: 6KV.
_ Kích thước (mm): 115 mm × 84 mm × 27 mm.
_ Khối lượng: 0.19kg.

Liên hệ 985.000 VNĐ

Đăng nhập để có giá ưu đãi

6-Port Cloud Managed Desktop Switch with 4-Port PoE
_ Đáp ứng tiêu chuẩn IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab.
_ Hỗ trợ tính năng PoE Watchdog, truyền khoảng cách xa (lên đến 250m), Loop Protection.
_ Hỗ trợ quản lý qua: Web, Cloud (DoLynkCare).
_ Cổng giao tiếp:
+ Port 1-4: 4 × RJ-45 10/100 Mbps (PoE);
+ Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink).
_ Công suất PoE: Port 1-4 ≤ 30 W, total ≤ 40 W.
_ Giao thức PoE: IEEE802.3af; IEEE802.3at.
_ Nút reset: 1.
_ Khả năng chuyển đổi: 4.8 Gbps.
_ Bộ nhớ lưu trữ MAC: 2K.
_ Nguồn: 53 VDC, 0.8 A.
_ Chống sét: 6KV.
_ Kích thước (mm): 115 mm × 84 mm × 27 mm.
_ Khối lượng: 0.19kg.

Basic

Layer

Layer 2

Switching Capacity

4.8 Gbps

Packet Forwarding Rate

3.57 Mpps

Description of Function Slots

Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External power supply: 53 VDC, 0.8 A

Power Consumption

Idling: ≤3 W
Full load: 42.4 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV

Net Weight

0.2 kg (0.44 lb)

Gross Weight

0.72 kg (1.59 lb)

Product Dimensions

115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)

Packaging Dimensions

195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; wall mount

PoE

Yes

PoE Power

Port 1-4 ≤ 30 W, total ≤ 36 W

PoE Protocol

IEEE802.3af; IEEE802.3at

PoE Power Consumption Management

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected

PoE Pin Assignment

1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）

Long Distance PoE Transmission

Yes

Hardware

DIP Switch

Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)

Reset Button

Performance

MTBF

232.62 years

Packet Buffer Size

4 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az

VLAN Number
